起源の場所: 中国
ブランド名: FSK / KOYO / NSK / FAG / NTN / TIMKEN / OEM
証明: ISO9001-2000 / CE / ROHS / UL
モデル番号: T2CC130
支払及び船積みの言葉
最小注文数量: 1 PCS
価格: Talk in the letter
パッケージの詳細: 1) カラー単箱梱包 + 段ボール箱梱包 + パレット、2) 工業用梱包
受渡し時間: 詳細確認後5～7日
支払条件: 信用状、電信送金、ウェスタンユニオン、マネーグラム
供給の能力: 100000個/月
モデル: |
T2CC130 ローヤリング |
軸承の大きさ: |
130*180*32mm |
重荷 を 背負う: |
2.4キロ |
HSコード: |
8482800000 |
精度評価: |
P0 / P6 / P5 / P4 / P2 |
元: |
中国 |
モデル: |
T2CC130 ローヤリング |
軸承の大きさ: |
130*180*32mm |
重荷 を 背負う: |
2.4キロ |
HSコード: |
8482800000 |
精度評価: |
P0 / P6 / P5 / P4 / P2 |
元: |
中国 |
Metric T2CC130 HR32926J Single Row Tapered Roller Bearing 130*180*32mm Premium Quality
Bearing Specification :
|
FSK Bearing Model Number |
T2CC130 Bearing |
| Alternative Number |
2007926E 32926 HR32926J 32926XU 32926JR E32926J |
|
Part Name |
Tapered Roller Bearings |
|
Application |
Railway Gearbox Bearings |
| Row | Single Row |
|
Brand |
FSK / KOYO / NSK / FAG / NTN / TIMKEN / OEM |
|
Material |
Gcr15 Chrome Steel |
|
Precision Rating |
ABEC-3 to ABEC-5 P6 / P5 / P4 |
| Vibration and Noise | Z0V0 / Z1V1 / Z2V2 / Z3V3 |
| Cage | Steel Cage |
| Weight |
2.4 kg |
| Dimension |
130*180*32mm |
| HS Code | 8482800000 |
| Original Country Show | CHINA |

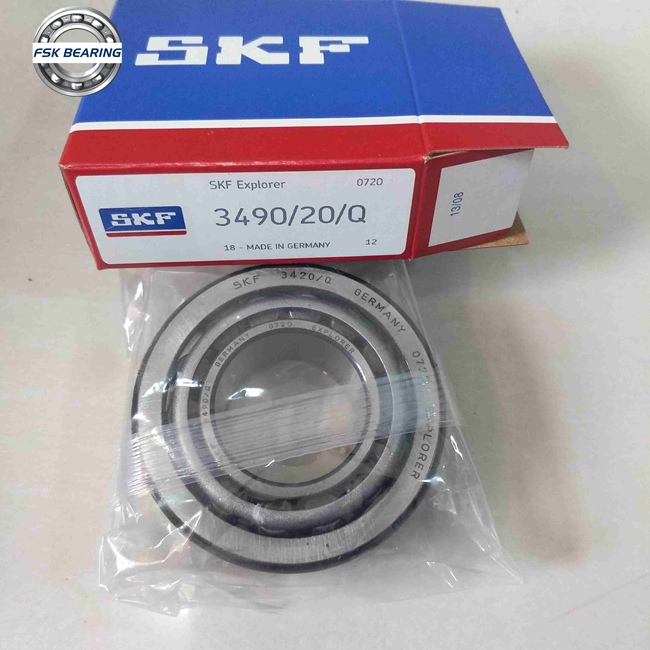

Bearings Detailed Pictures
Same Series Bearing We Do
| |
|||||||||||
| Bearing | Alternative Number | Alternative Number | Alternative Number | Alternative Number | Alternative Number | Alternative Number | Alternative Number | d | D | H | m |
| 32904 | 2007904E | T2BD020 | - | - | - | - | - | 20 mm | 37 mm | 12 mm | 0.05 KG |
| 32905 | 2007905E | T2BD025 | - | - | - | - | - | 25 mm | 42 mm | 12 mm | 0.07 KG |
| 32906 | 2007906E | T2BD030 | HR32906J | - | - | - | - | 30 mm | 47 mm | 12 mm | 0.08 KG |
| 32907 | 2007907E | T2BD035 | HR32907J | 32907JR | E32907J | - | - | 35 mm | 55 mm | 14 mm | 0.13 KG |
| 32908 | 2007908E | T2BC040 | HR32908J | 32908JR | E32908J | - | - | 40 mm | 62 mm | 15 mm | 0.19 KG |
| 32909 | 2007909E | T2BC045 | HR32909J | 32909JR | E32909J | - | - | 45 mm | 68 mm | 15 mm | 0.2 KG |
| 32910 | 2007910E | T2BC050 | HR32910J | 32910JR | E32910J | - | - | 50 mm | 72 mm | 15 mm | 0.2 KG |
| 32911 | 2007911E | T2BC055 | HR32911J | 32911JR | E32911J | - | - | 55 mm | 80 mm | 17 mm | 0.3 KG |
| 32912 | 2007912E | T2BC060 | HR32912J | 32912JR | E32912J | - | - | 60 mm | 85 mm | 17 mm | 0.31 KG |
| 32913 | 2007913E | T2BC065 | HR32913J | 32913JR | E32913J | - | - | 65 mm | 90 mm | 17 mm | 0.33 KG |
| 32914 | 2007914E | T2BC070 | HR32914J | 32914JR | E32914J | - | - | 70 mm | 100 mm | 20 mm | 0.49 KG |
| 32914-XL | - | - | - | - | - | - | - | 70 mm | 100 mm | 20 mm | 0.49 KG |
| 32915 | 2007915E | T2BC075 | 32915 TN9/QV G900 | HR32915J | 32915XU | 32915JR | E32915J | 75 mm | 105 mm | 20 mm | 0.52 KG |
| 32916 | 2007916E | T2BC080 | 32916JR | E32916J | - | - | - | 80 mm | 110 mm | 20 mm | 0.56 KG |
| 32917 | 2007917E | T2BC085 | 32917JR | E32917J | - | - | - | 85 mm | 120 mm | 23 mm | 0.78 KG |
| 32918 | 2007918E | T2BC090 | 32918JR | E32918J | - | - | - | 90 mm | 125 mm | 23 mm | 0.92 KG |
| 32919 | 2007919E | T2BC095 | HR32919J | 32919XU | 32919JR | E32919J | - | 95 mm | 130 mm | 23 mm | 0.96 KG |
| 32920 | 2007920E | T2CC100 | 32920/Q | 32920JR | E32920J | - | - | 100 mm | 140 mm | 25 mm | 1.17 KG |
| 32921 | 2007921E | T2CC105 | HR32921J | 32921XA | 32921JR | E32921J | - | 105 mm | 145 mm | 25 mm | 1.15 KG |
| 32922 | 2007922E | T2CC110 | 32922/Q | HR32922J | 32922XA | 32922JR | E32922J | 110 mm | 150 mm | 25 mm | 1.26 KG |
| 32924 | 2007924E | T2CC120 | 32924JR | HR32924J | 32924XU | E32924J | - | 120 mm | 165 mm | 29 mm | 1.82 KG |
| 32926 | 2007926E | T2CC130 | HR32926J | 32926XU | 32926JR | E32926J | - | 130 mm | 180 mm | 32 mm | 2.4 KG |
| 32928 | 2007928E | T2CC140 | HR32928J | 32928XU | 32928JR | E32928J | - | 140 mm | 190 mm | 32 mm | 2.6 KG |
| 32930 | 2007930E | T2DC150 | HR32930J | 32930XU | E32930J | - | - | 150 mm | 210 mm | 38 mm | 3.9 KG |
| 32932 | 2007932E | T2DC160 | HR32932J | 32932XU | 32932JR | - | - | 160 mm | 220 mm | 38 mm | 4.13 KG |
| 32934 | 2007934E | T3DC170 | HR32934J | 32934XU | 32934JR | - | - | 170 mm | 230 mm | 38 mm | 4.42 KG |
| 32936 | 2007936E | T4DC180 | HR32936J | 32936XU | 32936JR | - | - | 180 mm | 250 mm | 45 mm | 7.08 KG |
| 32938 | 2007938E | T4DC190 | HR32938J | 32938XU | 32938JR | - | - | 190 mm | 260 mm | 45 mm | 6.87 KG |
| 32940-A | 2007940E | T3EC200 | HR32940J | 32940XU | 32940JR | - | - | 200 mm | 280 mm | 51 mm | 10.2 KG |
| 32944 | 2007944E | T3EC220 | HR32944J | 32944XU | 32944JR | - | - | 220 mm | 300 mm | 51 mm | 10.2 KG |
| 32948 | 2007948E | T4EC240 | HR32948J | 32948XU | 32948JR | - | - | 240 mm | 320 mm | 51 mm | 11.1 KG |
| 32952 | 2007952E | T3EC260 | HR32952J | 32952XU | 32952JR | - | - | 260 mm | 360 mm | 63.5 mm | 18.7 KG |
| 32952-XL | - | - | - | - | - | - | - | 260 mm | 360 mm | 63.5 mm | 18.7 KG |
| 32956 | 2007956E | T4EC280 | 32956/C02 | HR32956J | 32956XU | 32956JR | 280 mm | 380 mm | 63.5 mm | 19.9 KG | |
| 32956-XL | - | - | - | - | - | - | - | 280 mm | 380 mm | 63.5 mm | 20 KG |
| 32960 | 2007960E | T3FD300 | HR32960J | 32960XU | 32960JR | - | - | 300 mm | 420 mm | 76 mm | 31.4 KG |
| 32960-XL | - | - | - | - | - | - | - | 300 mm | 420 mm | 76 mm | 31.5 KG |
| 32964 | 2007964E | T3FD320 | HR30964J | 32964X | 32964JR | - | - | 320 mm | 440 mm | 76 mm | 33.5 KG |
| 32964-XL | - | - | - | - | - | - | - | 320 mm | 440 mm | 76 mm | 33.5 KG |
| 32968 | 2007968E | T4FD340 | HR32968J | 32968XU | 32968JR | - | - | 340 mm | 460 mm | 76 mm | 35.5 KG |
| 32968-XL | - | - | - | - | - | - | - | 340 mm | 460 mm | 76 mm | 35 KG |
| 32972 | 2007972E | T4FD360 | HR32972J | 32972XU | 32972JR | - | - | 360 mm | 480 mm | 76 mm | 37.1 KG |
| 32972-XL | - | - | - | - | - | - | - | 360 mm | 480 mm | 76 mm | 37.1 KG |
| 32976 | - | - | - | - | - | - | - | 380 mm | 520 mm | 87 mm | 51.3 KG |
| 32980 | - | - | - | - | - | - | - | 400 mm | 540 mm | 87 mm | 54 KG |
| 32984 | - | - | - | - | - | - | - | 420 mm | 560 mm | 87 mm | 56.6 KG |
| 32988 | - | - | - | - | - | - | - | 440 mm | 600 mm | 100 mm | 76 KG |
About Railway Bearing
Description
1) High quality, competitive price .
2) Original same bearing and same packing , same label and same barcode.
3) High-end producing line and testing.
4) Professional team and service.
5) / FAG/ INA/ TIMKEN / NSK / KOYO / NTN / NACHI / IKO/ RHP/ ASAHI/ IZWZ / HRB / LYC can be offered.
FSK Advantage
+ 10 years manufacture experiences
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
Established in 2005, FSK has grown to be one of the main professional providers for bearings all over the world . We take pride in every single product that we sell .Our bearings are in hot sale with better quality and low pricing. You can be relieved and trusting us for our professional bearing technology and service , our friendly English-speaking team is always ready to help you out with importing procedures, product questions and technical support. And we promise to make you or your client proud with our products and services.
Why Choose Us
1.More than 10 years export experience
2.Strict quality control
3.Delivery in time
4.OEM ODM service are available with good price
5.Low MOQ
Payment Terms
1.100% TT
2.30% TT of the deposit ,70% before delivery
3.Western union
4. Paypal (Small amount )
Metric T2CC130 HR32926J Single Row Tapered Roller Bearing 130*180*32mm Premium Quality,Get Cheap Price from China Steering Bearing Factory Now !
