Wuxi FSK Transmission Bearing Co., Ltd fskbearing@hotmail.com 86-510-82713083
プロダクト細部
起源の場所: 中国
ブランド名: TIMKEN / NSK / NTN / FSKG / KBE / OEM
証明: ISO9001-2000 / SGS / BV / CE / IAF
モデル番号: T1511F
支払及び船積みの言葉
最小注文数量: 1個～5個
価格: 0.1-200USD
パッケージの詳細: 1）色付きのシングルボックスパッキング +カートンボックスパッキング +パレット、2）プラスチックチューブパッキング /クラフトパッキング
受渡し時間: 預金後3-7日
支払条件: 30％のデポジット、BLコピー後の残高
供給の能力: 100000個/月
モデル番号: |
T1511F |
T1511F 軸承の大きさ: |
127*266.7*58.738mm |
T1511F ローヤリング kg: |
17kg |
品質: |
ABEC-5 |
材料: |
GCR15クロムスチール |
起源: |
Wuxi China |
モデル番号: |
T1511F |
T1511F 軸承の大きさ: |
127*266.7*58.738mm |
T1511F ローヤリング kg: |
17kg |
品質: |
ABEC-5 |
材料: |
GCR15クロムスチール |
起源: |
Wuxi China |

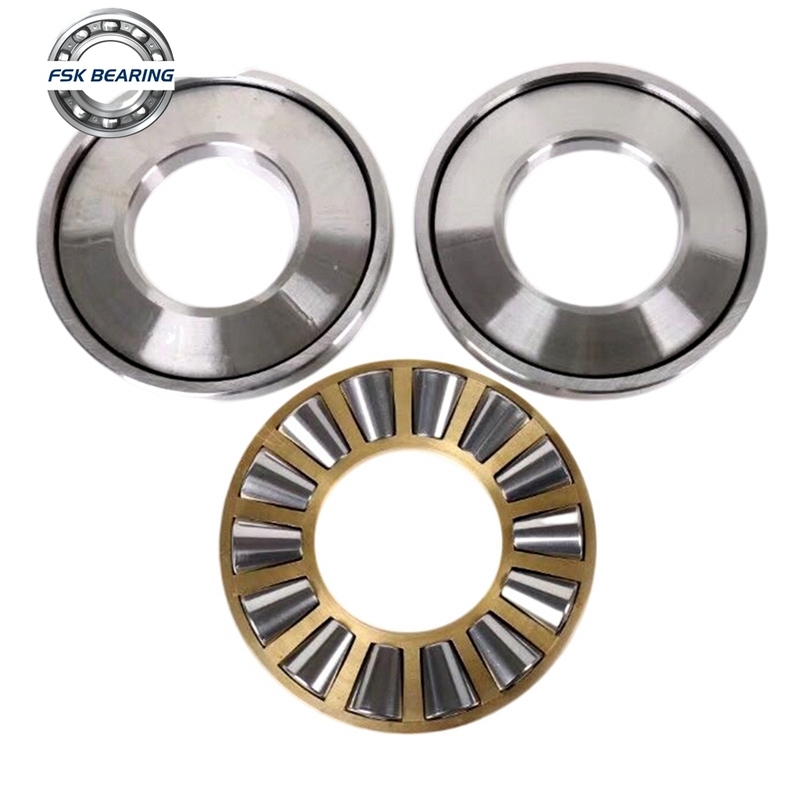

Full Complement T1511F Axial Tapered Roller Bearing For Steel Mill Plant
Bearing Specification :
| FSK BEARING Model Number | T1511F |
| Part Name | Thrust Tapered Roller Bearing |
| Application | Tower Crane/Rolling Mill/Oil Drilling |
| Material | Gcr15 Chrome steel |
| Cage | Brass Cage |
| Row | Single Row |
| Brand | TIMKEN / NSK / NTN / FSKG / KBE / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Dimensions(mm)(d*D*b) | 127*266.7*58.738mm |
| Weight / Mass ( KG ) | 17kg |
| HS Code | 8482800000 |
Bearings Detailed Pictures
Other Same Series Bearings We Do:
| PRODUCT | BEARING TYPE | DESIGN TYPE | B - BORE (MM) | D - O.D. (MM) | W - WIDTH O.R. (MM) | Weight (kg) |
C - DYNAMIC CAPACITY (N) | CO - STATIC CAPACITY (N) |
| T11011 | Thrust Bearings | T | 254 | 539.75 | 117.475 | 148 | 5,738,000 | 12,010,000 |
| T11115 | Thrust Bearings | T | 279.4 | 495.3 | 133.35 | 125 | 4,199,000 | 14,012,000 |
| T11120 | Thrust Bearings | T | 279.4 | 603.25 | 136.525 | 200 | 7,117,000 | 14,234,000 |
| T11120F | Thrust Bearings | T | 279.4 | 603.25 | 136.525 | 212 | 7,829,000 | 17,793,000 |
| T11421 | Thrust Bearings | T | 355.6 | 533.4 | 101.6 | 84 | 3,252,000 | 12,055,000 |
| T114520 | Thrust Bearings | T | 355.6 | 603.25 | 120.65 | 144 | 5,516,000 | 18,060,000 |
| T116021 | Thrust Bearings | T | 406.4 | 711.2 | 146.05 | 277 | 8,452,000 | 16,681,000 |
| T116050 | Thrust Bearings | T | 406.4 | 838.2 | 177.8 | 531 | 13,789,000 | 27,579,000 |
| T116050F | Thrust Bearings | T | 406.4 | 838.2 | 177.8 | 484 | 15,213,000 | 34,340,000 |
| T1411 | Thrust Bearings | T | 101.6 | 215.9 | 46.038 | 9 | 979,000 | 1,779,000 |
| T1411F | Thrust Bearings | T | 101.6 | 215.9 | 46.038 | 9 | 1,112,000 | 2,313,000 |
| T1441 | Thrust Bearings | T | 111.76 | 223.52 | 55.88 | 11 | 925,000 | 1,668,000 |
| T1451 | Thrust Bearings | T | 114.3 | 250.825 | 53.975 | 14 | 1,245,000 | 2,313,000 |
| T1511 | Thrust Bearings | T | 127 | 266.7 | 58.738 | 17 | 1,401,000 | 2,602,000 |
| T1511F | Thrust Bearings | T | 127 | 266.7 | 58.738 | 17 | 1,624,000 | 3,403,000 |
| T1520 | Thrust Bearings | T | 127 | 250.825 | 55.563 | 14 | 1,112,000 | 2,002,000 |
| T1520F | Thrust Bearings | T | 127 | 250.825 | 55.563 | 13 | 1,334,000 | 2,713,000 |
| T1611 | Thrust Bearings | T | 152.4 | 317.5 | 69.85 | 30 | 1,890,000 | 3,625,000 |
| T1611F | Thrust Bearings | T | 152.4 | 317.5 | 69.85 | 28 | 2,180,000 | 4,804,000 |
| T1651 | Thrust Bearings | T | 165.1 | 311.15 | 88.9 | 34 | 1,668,000 | 2,713,000 |
| T1651F | Thrust Bearings | T | 165.1 | 311.15 | 88.9 | 31 | 1,802,000 | 3,269,000 |
| T1661 | Thrust Bearings | T | 168.275 | 304.8 | 69.85 | 25 | 1,490,000 | 2,669,000 |
| T1661F | Thrust Bearings | T | 168.275 | 304.8 | 69.85 | 23 | 1,735,000 | 3,470,000 |
| T1691 | Thrust Bearings | T | 174.625 | 358.775 | 82.55 | 46 | 2,313,000 | 4,359,000 |
| T1709 | Thrust Bearings | T | 177.8 | 431.8 | 101.6 | 87 | 3,914,000 | 8,007,000 |
| T1711 | Thrust Bearings | T | 177.8 | 368.3 | 82.55 | 47 | 2,402,000 | 4,626,000 |
| T1711F | Thrust Bearings | T | 177.8 | 368.3 | 82.55 | 44 | 2,758,000 | 6,094,000 |
| T17519 | Thrust Bearings | T | 190 | 355.6 | 75.997 | 36 | 2,180,000 | 6,939,000 |
| T1811 | Thrust Bearings | T | 203.2 | 419.1 | 92.075 | 68 | 3,354,000 | 6,227,000 |
| T1811F | Thrust Bearings | T | 203.2 | 419.1 | 92.075 | 63 | 3,625,000 | 8,140,000 |
Our other Hot Sale Bearings
| INA TIMKEN NSK KOYO NACHI NTN ASAHI FYH | Tapered Roller Bearing | 30200.30300.32200.32300.32000.33000 |
| Inched | ||
| Deep Groove Ball Bearing | 6000.6200.6300.6400.6800 | |
| Miniature Ball Bearing | ||
| Truck Wheel Bearing | 800792 A VKBA 5412 566425.H195 BTH 0022 | |
| Automobile Wheel Bearing | VKBA1343 DAC34620037 BA2B633313CA etc | |
| Air Conditioner Bearing | 30BD219 30BD40 30BD5222 | |
| Clutch Release Bearing | 68TKA3506AR TK701A1 78TK14001AR 54TKA3501 | |
| Spherical Roller Bearing | 22200 22300 23000 CC CA E | |
| Cylindrical Roller Bearing | good at LINK BELT cylindrical roller bearings | |
| Pillow Block Bearing with Housing | UCP UCF UCT UCFL UCFC etc | |
| Needle Roller Bearing | Full types of needle roller bearings | |
| Printing Machine Bearings | F series with needle roller and cylindrical roller structure |
Our Company Photo:
About Us:
1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10 years.300 bearing types,15 million sets items ar produced yearly and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more reasonable price all over the world. Customers could receive good quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and experienced engineers for more than 10 years.We test bearings one by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
We are glad to receive any comments from all the world by email,by call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications
FAQ
|
Q:Are you a trader or manufacturer? |
| A:We are factory specializing in all kind of bearings. We can give you the best price and better service. | |
| Q:What is your delivery time? | |
| A:Sample order: Immediate delivery , bulk order: usually 30 days. | |
| Q:Can i request sample? | |
| A:Of course , sample is ok and we can give you a sample by free. | |
| Q:What's the shipping way? | |
| A:According to YOUR demands. | |
| Q:Can you accept OEM or ODM? | |
| A:Yes, of course. logo is also acceptable. | |
| Q:How is quality controlled? | |
| A:Quality is the key ! | |
| Our QC team and engineer team works through all the process from an order placed to shipped. | |
| Q: Can I come for a visit? | |
| You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule. |
