プロダクト細部
起源の場所: 中国
ブランド名: FSKG / KBE / OEM / Any Brand
証明: ISO9001-2000 / CE / ROHS / UL / SGS
モデル番号: 6230 2rs
支払及び船積みの言葉
最小注文数量: 1個のPC
価格: Talk in the letter
パッケージの詳細: 1) カラー単箱梱包 + 段ボール箱梱包 + パレット、2) 工業用梱包
受渡し時間: 詳細確認後5～7日
支払条件: L/C、T/T、Western Union、MoneyGram
供給の能力: 100000pcs/月
モデル番号: |
6230 2rs |
6230 2RSサイズ: |
150x270x45mm |
6230 2rs重量: |
9.4 kg |
販売エリア: |
東北アジア,東南アジア,アフリカ,中東,ヨーロッパ,北米,南米 |
応用: |
放射状荷重 |
モデル番号: |
6230 2rs |
6230 2RSサイズ: |
150x270x45mm |
6230 2rs重量: |
9.4 kg |
販売エリア: |
東北アジア,東南アジア,アフリカ,中東,ヨーロッパ,北米,南米 |
応用: |
放射状荷重 |
Gcr15 6230 2RS 6230 ZZ Deep Groove Ball Bearing 150x270x45mm Single Row
Bearing Specification :
| FSK BEARING Model Number | 6230 2RS |
| Part Name | Deep Groove Ball Bearing |
| Row | Single Row |
| Dimensions(mm)(d*D*b) | 150x270x45mm |
| Weight / Mass ( KG ) | 9.4 kg |
| Material | Gcr15 Chrome Steel |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | FSKG / KBE / OEM / Any Brand |
| Original Country Show |
CHINA ( FSKG) |

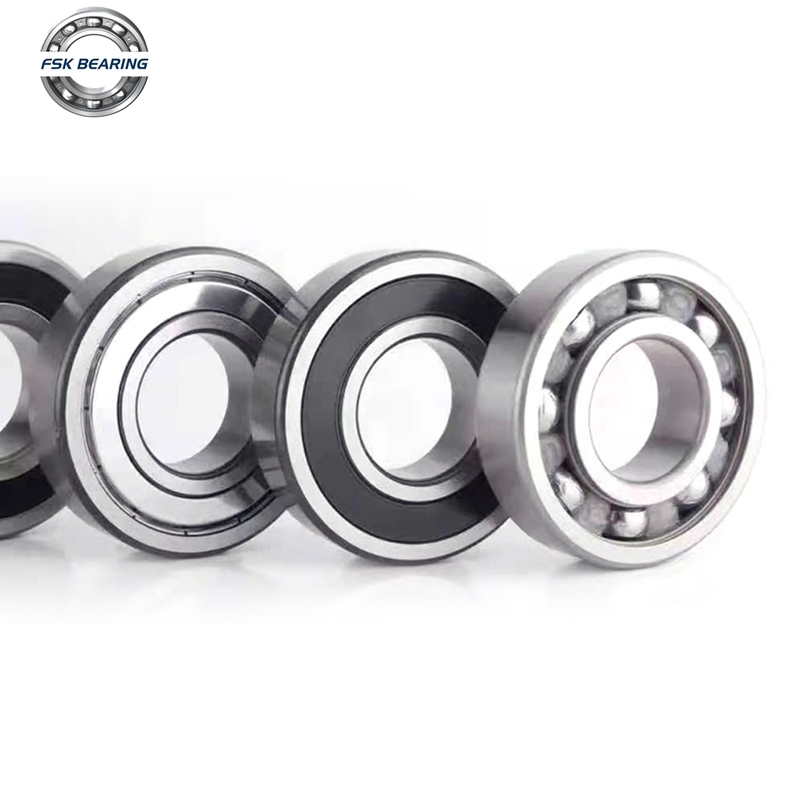

Detail Bearing Photos :
Same Series Bearing We Do:
| Bearing Number | d | D | H | m |
| 623 | 3 mm | 10 mm | 4 mm | 0 KG |
| 624 | 4 mm | 13 mm | 5 mm | 0 KG |
| 625 | 5 mm | 16 mm | 5 mm | 0.01 KG |
| 626 | 6 mm | 19 mm | 6 mm | 0.01 KG |
| 627 | 7 mm | 22 mm | 7 mm | 0.01 KG |
| 628 | 8 mm | 24 mm | 8 mm | 0.02 KG |
| 629 | 9 mm | 26 mm | 8 mm | 0.02 KG |
| 6200 | 10 mm | 30 mm | 9 mm | 0.03 KG |
| 6201 | 12 mm | 32 mm | 10 mm | 0.04 KG |
| 6202 | 15 mm | 35 mm | 11 mm | 0.05 KG |
| 6203 | 17 mm | 40 mm | 12 mm | 0.07 KG |
| 6203 ETN9 | 17 mm | 40 mm | 12 mm | 0.06 KG |
| 6204 | 20 mm | 47 mm | 14 mm | 0.11 KG |
| 6204 ETN9 | 20 mm | 47 mm | 14 mm | 0.1 KG |
| 62/22 | 22 mm | 50 mm | 14 mm | 0.13 KG |
| 6205 | 25 mm | 52 mm | 15 mm | 0.13 KG |
| 6205 ETN9 | 25 mm | 52 mm | 15 mm | 0.12 KG |
| 62/28 | 28 mm | 58 mm | 16 mm | 0.17 KG |
| 6206 | 30 mm | 62 mm | 16 mm | 0.2 KG |
| 6206 ETN9 | 30 mm | 62 mm | 16 mm | 0.18 KG |
| 62/32 | 32 mm | 65 mm | 17 mm | 0.23 KG |
| 6207 | 35 mm | 72 mm | 17 mm | 0.29 KG |
| 6207 ETN9 | 35 mm | 72 mm | 17 mm | 0.26 KG |
| 6208 ETN9 | 40 mm | 80 mm | 18 mm | 0.34 KG |
| 6208 | 40 mm | 80 mm | 18 mm | 0.37 KG |
| 6209 | 45 mm | 85 mm | 19 mm | 0.42 KG |
| 6210 | 50 mm | 90 mm | 20 mm | 0.45 KG |
| 6211 | 55 mm | 100 mm | 21 mm | 0.61 KG |
| 6212 | 60 mm | 110 mm | 22 mm | 0.78 KG |
| 6213 | 65 mm | 120 mm | 23 mm | 1 KG |
| 6214 | 70 mm | 125 mm | 24 mm | 1.1 KG |
| 6215 | 75 mm | 130 mm | 25 mm | 1.2 KG |
| 6216 | 80 mm | 140 mm | 26 mm | 1.45 KG |
| 6217 | 85 mm | 150 mm | 28 mm | 1.8 KG |
| 6218 | 90 mm | 160 mm | 30 mm | 2.2 KG |
| 6219 | 95 mm | 170 mm | 32 mm | 2.65 KG |
| 6220 | 100 mm | 180 mm | 34 mm | 3.15 KG |
| 6222 | 100 mm | 200 mm | 38 mm | 4.45 KG |
| 6221 | 105 mm | 190 mm | 36 mm | 3.8 KG |
| 6224 | 120 mm | 215 mm | 40 mm | 5.25 KG |
| 6226 | 130 mm | 230 mm | 40 mm | 5.85 KG |
| 6228 | 140 mm | 250 mm | 42 mm | 7.75 KG |
| 6230 | 150 mm | 270 mm | 45 mm | 10 KG |
| 6232 | 160 mm | 290 mm | 48 mm | 13 KG |
| 6234 | 170 mm | 310 mm | 52 mm | 16 KG |
| 6236 | 180 mm | 320 mm | 52 mm | 16.5 KG |
| 6238 | 190 mm | 340 mm | 55 mm | 19.5 KG |
| 6240 | 200 mm | 360 mm | 58 mm | 23.5 KG |
| 6244 | 220 mm | 400 mm | 65 mm | 33.5 KG |
| 6248 M | 240 mm | 440 mm | 72 mm | 51 KG |
| 6252 M | 260 mm | 480 mm | 80 mm | 65.5 KG |
| 6256 M | 280 mm | 500 mm | 80 mm | 72 KG |
| 6260 M | 300 mm | 540 mm | 85 mm | 88.5 KG |
| 6264 MA | 320 mm | 580 mm | 92 mm | 110 KG |
| 6268 MA | 340 mm | 620 mm | 92 mm | 132 KG |
FSK Bearing Company Advantages:
(1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.
Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.
So we can get the trust of a large number of customers, and supply them for several years.
(2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.
We can also according to customer requirements change their own mark.
(3) Price, our manufacture ensure that our prices across China are quite competitive.
It is better for you to compare prices and quality among suppliers.
But everyone knows you can not buy the highest quality products with the lowest price,
but our product is the best quality if you use equal price.
FSK Cooperation Detail
Delivery:
For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
For max production , we will ship by sea/air.
Payment Item:
TT, 30% deposit , 70% before shippment.
L/C At Sight
Paypal Or Western Union In advance
Service:
Trade Assurance
Payment Protection
Timely Delivery Guaranteed
Product Qualtity Protection
Gcr15 6230 2RS 6230 ZZ Deep Groove Ball Bearing 150x270x45mm Single Row,Get Cheap Price From China Bearing Factory Now !
