プロダクト細部
起源の場所: 中国
ブランド名: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
証明: ISO9001-2000 / CE / ROHS / UL
モデル番号: VKC2542
支払及び船積みの言葉
最小注文数量: 1pcs
パッケージの詳細: 1）色付きのシングルボックスパッキング +カートンボックスパッキング +パレット、2）産業用梱包
座標番号: |
VKC2542 |
サイズ: |
知るために私たちに連絡してください |
重さ: |
0.23kg |
材料: |
GCR15クロムスチール |
応用: |
クラッチを離すベアリング |
起源: |
武蔵江蘇 |
座標番号: |
VKC2542 |
サイズ: |
知るために私たちに連絡してください |
重さ: |
0.23kg |
材料: |
GCR15クロムスチール |
応用: |
クラッチを離すベアリング |
起源: |
武蔵江蘇 |

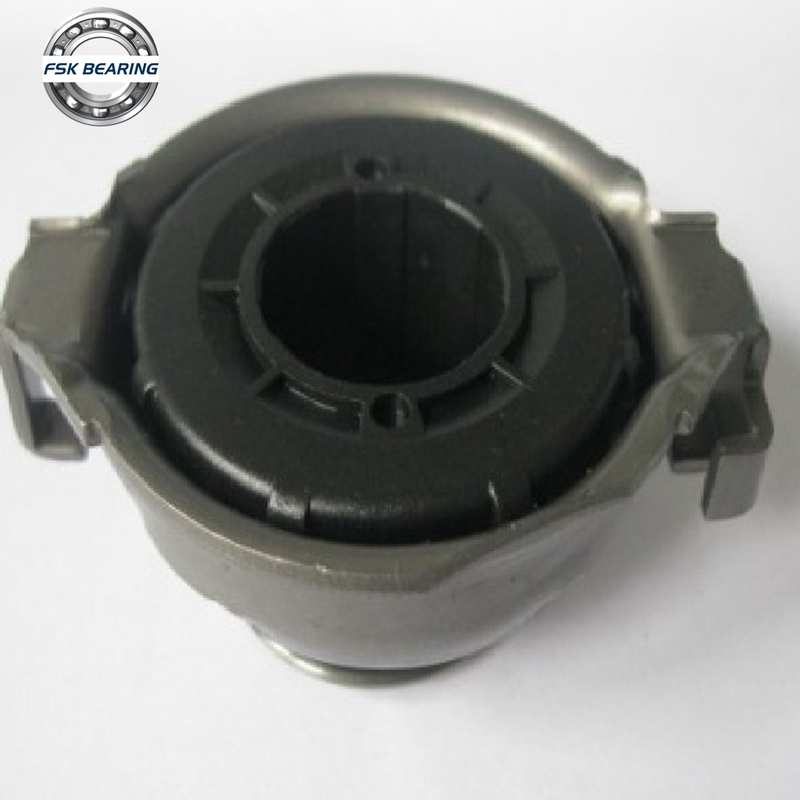

High Quality VKC2542 500076010 3151998301 Automobile Clutch Release Bearing For Citroen
Bearing Specification :
|
Model Number |
VKC2542 |
|
Part Name |
Automobile Clutch Release Bearing |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-3 / ABEC-5 / ABEC-7 |
| Material | Gcr15 Chrome Steel |
|
Dimensions(mm)(d*D*b) |
Contact Us To Know |
|
Weight / Mass ( KG ) |
0.23kg |
|
HS Code |
8482800000 |
| Original Country Show | China |
Bearings Detailed Pictures :
Other Clutch Release Bearings We Offer :
| Bearing | Inner ring | Inner Ring Height | Outer Ring Height | Outer Diameter Of Outer Ring | Chamfer | Outer Diameter Of Inner Shaft | Oil supply position | Oil Supply Hole | Oil Quantity | Quality | Maximum Torque | Overspeed | Idling Torque | |||
| Inside Diameter | Keyway | Chamfer | A | C | B | K | F | E | cc | kg | N.M | Inner Ring | Outer Circle | N.M | ||
| MG300 | 19 | 5x2 | 0.8 | 63 | 60 | 77 | 1.3 | 28.5 | 10.4 | M6x1.0 | 25 | 1.8 | 314 | 2800 | 900 | 0.023 |
| MG400 | 22 | 5x2 | 1 | 70 | 67 | 88 | 1.6 | 31.7 | 10.7 | M6x1.0 | 30 | 2.7 | 539 | 2600 | 800 | 0.029 |
| MG500 | 31.5 | 7x3 | 1.3 | 89 | 86 | 108 | 1.6 | 44.4 | 12.3 | M6x1.0 | 50 | 5 | 1620 | 2400 | 800 | 0.052 |
| MG600 | 50 | 12x3.5 | 1.6 | 95 | 92 | 136 | 1.6 | 69.8 | 12.8 | M6x1.0 | 80 | 8.6 | 3140 | 2100 | 700 | 0.086 |
| MG700 | 70 | 18x6 | 1.8 | 127 | 124 | 180 | 1.6 | 101.5 | 19.8 | M6x1.0 | 135 | 19.5 | 5880 | 1500 | 500 | 0.173 |
| MG750 | 85 | 24x6 | 0.6 | 153 | 150 | 200 | 1.5 | 110 | 75 | M8x1.25 | 400 | 37 | 9500 | 7800 | 600 | 0.35 |
| MG800 | 110 | 28x7 | 1 | 158 | 155 | 250 | 1.5 | 140 | 77.5 | M8x1.25 | 500 | 46.5 | 17600 | 1300 | 475 | 0.55 |
| MG900 | 135 | 35x9 | 1.3 | 165 | 160 | 300 | 1.5 | 170 | 80 | M8x1.25 | 620 | 70.5 | 24500 | 1200 | 400 | 0.69 |
| MG1000 | 160 | 38x10 | 1.3 | 188 | 180 | 370 | 1.5 | 200 | 90 | M8x1.25 | 850 | 108.5 | 33800 | 1200 | 325 | 0.83 |
| MG1100 | 185 | 45x14 | 3 | 260 | 250 | 470 | 3 | 260 | 125 | M12x1.75 | 2900 | 250 | 78400 | 350 | - | 1.53 |
| MG1200 | 200 | 45x14 | 3 | 260 | 250 | 500 | 3 | 280 | 125 | M12x1.75 | 3000 | 280 | 95100 | 300 | - | 1.8 |
| MG1300 | 250 | 56x17.5 | 3 | 280 | 260 | 600 | 3 | 340 | 130 | M12x1.75 | 3800 | 410 | 176000 | 250 | - | 1.91 |
Our Bearing Production Range:
1. Tapered Roller Bearing
2. Deep Groove Ball Bearing
3. Truck Wheel Bearing
4. Automobile Wheel Bearing
5. Cement Mixer Bearing
6. Clutch Release Bearing
7. Self Aligning Ball Bearing
8. Cylindrical Roller Bearing
9. Needle Bearing
10. Angular Contact Bearing
11. Thrust Ball Bearing
12. Thrust Roller Bearing
13. Pillow Block Bearing
14. Spherical Roller Bearing
FSK Company Information
FAQ
|
|
| Q:Are you a trader or manufacturer? | |
| A:We are factory specializing in all kind of bearings. We can give you the best price and better service. | |
| Q:What is your delivery time? | |
| A:Sample order: Immediate delivery , bulk order: usually 30 days. | |
| Q:Can i request sample? | |
| A:Of course , sample is ok and we can give you a sample by free. | |
| Q:What's the shipping way? | |
| A:According to YOUR demands. | |
| Q:Can you accept OEM or ODM? | |
| A:Yes, of course. logo is also acceptable. | |
| Q:How is quality controlled? | |
| A:Quality is the key ! | |
| Our QC team and engineer team works through all the process from an order placed to shipped. | |
| Q: Can I come for a visit? | |
| You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule. |
High Quality VKC2542 500076010 3151998301 Automobile Clutch Release Bearing For Citroen, Get Cheap Price From China Bearings Factory Now !
