プロダクト細部
起源の場所: 中国
ブランド名: FSK / KOYO / NSK / FAG / NTN / TIMKEN / OEM
証明: ISO9001-2000 / CE / ROHS / UL
モデル番号: E-625984
支払及び船積みの言葉
最小注文数量: 1個
価格: Talk in the letter
パッケージの詳細: 1) カラーシングルボックス梱包 + カートンボックス梱包 + パレット、 2) 工業用梱包
受渡し時間: 詳細確認後5-7日
支払条件: L/C、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 100000個/月
モデル: |
E-625984 ベアリング |
E-625984 ベアリング重量: |
374kg |
E-625984 ベアリングサイズ: |
420*592*432mm |
HSコード: |
8482800000 |
精度評価: |
P0 / P6 / P5 / P4 /P2 |
オリンギン: |
中国 |
モデル: |
E-625984 ベアリング |
E-625984 ベアリング重量: |
374kg |
E-625984 ベアリングサイズ: |
420*592*432mm |
HSコード: |
8482800000 |
精度評価: |
P0 / P6 / P5 / P4 /P2 |
オリンギン: |
中国 |

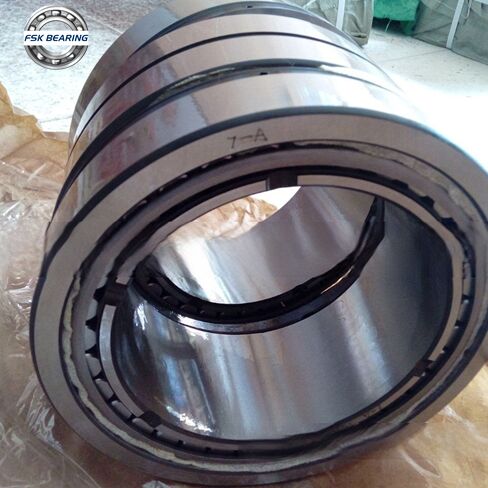

Radial E-625984 Tapered Roller Bearing 420*592*432mm Thicked Steel Four Row
Bearing Specification
|
FSK Bearing Model Number |
E-625984 Bearing |
|
Part Name |
Tapered Roller Bearings |
| Application | Rolling Mill Bearing |
|
Row |
Four Row |
|
Brand |
FSK / FSKG / KOYO / NSK / FAG / NTN / TIMKEN / OEM |
|
Material |
Gcr15 Chrome Steel |
|
Precision Rating |
ABEC-3 to ABEC-5 P6 / P5 / P4 |
| Cage | Steel Cage |
| Weight (kg) | 374 kg |
| Dimension | 420*592*432 mm |
| HS Code | 8482800000 |
| Original Country Show | CHINA |
Bearings Detailed Pictures
Same Series Bearing We Do
| Bearing number2)to 4) | Boundary dimensions (mm) |
Weight (Kg) |
Basic load rating dynamic static kN |
||||||
| (TYPE A)With inner ring spacer | d | D | B₂ | C₂ | rsmin¹) | r¹smin¹) | Cr | Cor | |
| E-625924 | 120 | 170 | 124 | 124 | 2 | 2.5 | 8.97 kg | 430 | 1020 |
| E-623024 | 120 | 180 | 100 | 100 | 2 | 2.5 | - | 435 | 745 |
| E-623124 | 120 | 200 | 132 | 132 | 2 | 2.5 | - | 710 | 1220 |
| E-CRO-2418 | 120 | 210 | 174 | 174 | 2.5 | 2.5 | 22.2 kg | 950 | 1710 |
| T-E-M224749D/M224710/M224710D | 120.65 | 174.625 | 141.288 | 139.703 | 1.5 | 0.8 | 11.5 kg | 670 | 1490 |
| T-E-48290D/48220/48220D | 127 | 174.625 | 158.75 | 158.75 | 3.3 | 1.5 | 14.3 kg | 730 | 1730 |
| E-625926 | 130 | 184 | 134 | 134 | 2 | 2.5 | 11.3 kg | 535 | 1190 |
| T-E-67391DW/67322/67323D | 130.175 | 196.85 | 200.025 | 200.025 | 3.3 | 1.5 | - | 995 | 2210 |
| E-CRO-2701 | 135 | 180 | 160 | 160 | 2 | 1 | 13.5 kg | 555 | 1360 |
| T-E-48393D/48320/48320D | 136.525 | 190.5 | 161.925 | 161.925 | 3.3 | 1.5 | 17.3 kg | 770 | 1900 |
| T-E-48680D/48620/48620D | 139.7 | 200.025 | 157.165 | 160.34 | 3.3 | 0.8 | 17.3 kg | 780 | 1950 |
| E-625928 | 140 | 198 | 144 | 144 | 2 | 2.5 | 14 kg | 640 | 1460 |
| E-623028 | 140 | 210 | 114 | 114 | 2 | 2.5 | - | 570 | 1070 |
| E-CRO-2817 | 140 | 210 | 115 | 115 | 2 | 2.5 | 13.9 kg | 570 | 1070 |
| E-625930 | 150 | 212 | 155 | 155 | 2.5 | 3 | 16.9 kg | 735 | 1700 |
| T-E-M231649D/M231610/M231610D | 152.4 | 222.25 | 174.625 | 174.625 | 1.5 | 1.5 | 24.7 kg | 1030 | 2350 |
| E-625932 | 160 | 226 | 165 | 165 | 2.5 | 3 | 20.2 kg | 855 | 2030 |
| E-CRO-3209 | 160 | 265 | 173 | 173 | 2.5 | 2.5 | 37 kg | 1220 | 2270 |
| E-T-46791D/46720/46721D | 165.1 | 225.425 | 165.1 | 168.275 | 3.3 | 0.8 | - | 830 | 2220 |
| E-CRO-3456 | 165.1 | 230 | 175 | 175 | 2.5 | 1 | - | 935 | 2230 |
| E-625934 | 165.1 | 240 | 175 | 175 | 2.5 | 3 | 24.4 kg | 930 | 2200 |
| E-623034 | 170 | 260 | 144 | 144 | 2.5 | 3 | - | 930 | 1730 |
| E-623134 | 170 | 280 | 185 | 185 | 2.5 | 3 | - | 1380 | 2540 |
| E-67791D/67720/67721D | 177.8 | 247.65 | 192.088 | 192.088 | 3.3 | 1.5 | 29.4 kg | 1110 | 2760 |
| E-EE280700D/281200/281201D | 177.8 | 304.8 | 238.227 | 233.365 | 3.3 | 3.3 | 69.9 kg | 1750 | 3100 |
| E-625936/250 | 180 | 250 | 185 | 185 | 2 | 3.5 | - | 995 | 2350 |
| E-625936 | 180 | 254 | 185 | 185 | 2.5 | 3 | 28.9 kg | 1010 | 2390 |
| T-E-M238849D/M238810/M238810D | 187.325 | 269.875 | 211.138 | 211.138 | 3.3 | 1.5 | - | 1490 | 3500 |
| E-625938 | 190 | 268 | 196 | 196 | 2.5 | 3 | 34.7 kg | 1170 | 2850 |
| E-CRO-3816 | 190 | 270 | 190 | 190 | 2.5 | 0.6 | - | 1160 | 2990 |
| T-E-67885D/67820/67820D | 190.5 | 266.7 | 187.325 | 188.912 | 3.3 | 1.5 | 33.6 kg | 1160 | 2990 |
| E-M240648D/M240611/M240611D | 198.438 | 284.162 | 225.425 | 225.425 | 3.3 | 1.5 | - | 1690 | 4000 |
| E-625940/280 | 200 | 280 | 206 | 206 | 2.5 | 3 | - | 1330 | 3300 |
| E-625940 | 200 | 282 | 206 | 206 | 2.5 | 3 | 40.5 kg | 1330 | 3300 |
| E-CRO-4013 | 200 | 290 | 160 | 160 | 2.5 | 2.5 | 35.1 kg | 1060 | 2210 |
| E-CRO-4109 | 205 | 320 | 205 | 205 | 3 | 3 | - | 1450 | 2510 |
| T-E-67986D/67920/67920D | 206.375 | 282.575 | 190.5 | 190.5 | 3.3 | 0.8 | 35.4 kg | 1180 | 3150 |
| T-E-LM742749D/LM742714/LM742714D | 215.9 | 288.925 | 177.8 | 177.8 | 3.3 | 0.8 | 34.3 kg | 1240 | 3250 |
| E-9974D/9920/9920D | 216.103 | 330.2 | 263.525 | 269.875 | 3.3 | 1.5 | 81.2 kg | 2220 | 5150 |
| E-CRO-4412 | 220 | 300 | 230 | 230 | 2.5 | 2.5 | 42.1 kg | 1500 | 3650 |
| E-625944 | 220 | 310 | 226 | 226 | 3 | 4 | 53.5 kg | 1530 | 3800 |
| E-CRO-4411 | 220 | 320 | 200 | 200 | 3 | 1 | 53 kg | 1540 | 3400 |
| E-CRO-4432 | 220 | 330 | 260 | 260 | 3 | 3 | - | 2140 | 4900 |
| E-623044 | 220 | 340 | 190 | 190 | 3 | 4 | - | 1670 | 3300 |
| T-E-M244249D/M244210/M244210D | 220.662 | 314.325 | 239.712 | 239.712 | 3.3 | 1.5 | 60.2 kg | 2040 | 4900 |
| E-CRO-4606 | 228.6 | 364 | 296.875 | 296.875 | 3.3 | 3.3 | 117.9 kg | 2630 | 5550 |
| E-EE700090D/700167/700168D | 228.6 | 425.45 | 349.25 | 361.95 | 6.4 | 3.5 | 232 kg | 3850 | 8250 |
| T-E-8576D/8520/8520D | 234.95 | 327.025 | 196.85 | 196.85 | 3.3 | 1.5 | 53.6 kg | 1370 | 3700 |
| E-625948A | 240 | 338 | 248 | 248 | 3 | 4 | 70 kg | 2080 | 4950 |
| E-CRO-4829 | 240 | 350 | 230 | 230 | 2.5 | 1.5 | - | 2030 | 4700 |
| E-CRO-4803 | 240 | 365 | 290 | 290 | 2.5 | 2.5 | - | 2700 | 5850 |
| E-LM247748D/LM247710/LM247710DA | 244.475 | 327.025 | 193.675 | 193.675 | 3.3 | 1.5 | 46.1 kg | 1580 | 4100 |
| E-EE126096D/126150/126151D | 244.475 | 381 | 304.8 | 304.8 | 4.8 | 3.3 | 132 kg | 2470 | 5750 |
| E-CRO-5011 | 250 | 365 | 270 | 270 | 4.3 | 3 | - | 2630 | 6250 |
| T-E-M249748D/M249710/M249710D | 254 | 358.775 | 269.875 | 269.875 | 3.3 | 3.3 | 85.6 kg | 2650 | 6550 |
| E-EE822101D/822175/822176D | 254 | 444.5 | 279.4 | 279.4 | 6.4 | 3.3 | 185 kg | 3200 | 5900 |
| E-CRO-5220 | 260 | 360 | 272 | 272 | 2.5 | 3 | - | 2310 | 5750 |
| E-625952 | 260 | 368 | 268 | 268 | 4 | 5 | 90.3 kg | 2210 | 5700 |
| E-623052 | 260 | 400 | 220 | 220 | 4 | 5 | - | 2180 | 4400 |
| E-CRO-5215 | 260 | 400 | 255 | 255 | 7.5 | 4 | 106 kg | 2450 | 5300 |
| E-CRO-5228 | 260 | 400 | 320 | 320 | 4 | 4 | - | 3100 | 7050 |
| E-EE134102D/134143/134144D | 260.35 | 365.125 | 228.6 | 228.6 | 6.4 | 3.3 | 76.5 kg | 1750 | 4550 |
| E-CRO-5305 | 266.7 | 355.6 | 230.188 | 228.6 | 3.3 | 1.5 | 62.3 kg | 1590 | 4350 |
| T-E-LM451349D/LM451310/LM451310D | 266.7 | 355.6 | 230.188 | 228.6 | 3.3 | 1.5 | 62 kg | 2040 | 5350 |
| T-E-M252349D/M252310/M252310D | 269.875 | 381 | 282.575 | 282.575 | 3.3 | 3.3 | 97.5 kg | 2890 | 7150 |
| E-EE275109D/275155/275156D | 276.225 | 393.7 | 269.878 | 269.878 | 6.4 | 1.5 | - | 2250 | 5650 |
| E-CRO-5628 | 276.225 | 381 | 269.875 | 269.875 | 3.3 | 1.5 | 79.6 kg | 2490 | 6450 |
| E-EE135111D/135155/135156D | 279.4 | 393.7 | 269.875 | 269.875 | 6.4 | 1.5 | 103 kg | 2150 | 5350 |
| E-EE722111D/722185/722186D | 279.4 | 469.9 | 346.075 | 349.25 | 3.3 | 6.4 | 258 kg | 3850 | 8700 |
| T-E-LM654644D/LM654610/LM654610D | 279.578 | 380.898 | 244.475 | 244.475 | 3.3 | 1.5 | 83.2 kg | 2160 | 6200 |
| E-CRO-5650 | 280 | 380 | 290 | 290 | 3.1 | 1.7 | - | 2740 | 7250 |
| E-625956 | 280 | 395 | 288 | 288 | 4 | 5 | 111 kg | 2840 | 7100 |
| E-CRO-5645 | 280 | 395 | 290 | 290 | 4 | 3 | - | 3100 | 7850 |
| T-E-LM654648D/LM654610/LM654610D | 285.75 | 380.898 | 244.475 | 244.475 | 3.3 | 1.5 | 82.5 kg | 2160 | 6200( |
| E-M255449D/M255410/M255410DA | 288.925 | 406.4 | 298.45 | 298.45 | 3.3 | 3.3 | - | 3300 | 8300 |
| E-EE330116D/330166/330167D | 292.1 | 422.275 | 269.875 | 269.875 | 3.3 | 6.4 | 124 kg | 2850 | 6540 |
| E-EE921150D/921875/921876D | 292.1 | 476.25 | 296.047 | 292.1 | 3.3 | 1.5 | 208 kg | 3400 | 6800 |
| E-625960/420 | 300 | 420 | 310 | 310 | 4 | 5 | - | 2850 | 7450 |
| E-625960 | 300 | 424 | 310 | 310 | 4 | 5 | 138 kg | 2850 | 7450 |
| E-CRO-6019 | 300 | 430 | 280 | 280 | 4 | 4 | - | 2990 | 7100 |
| E-CRO-6022 | 300 | 430 | 300 | 300 | 4 | 4 | 141 kg | 2990 | 7100 |
| E-CRO-6016 | 300 | 470 | 270 | 270 | 4 | 5 | - | 3450 | 7000 |
| E-CRO-6017 | 300 | 470 | 292 | 292 | 4 | 4 | - | 3900 | 8300 |
| E-623160 | 300 | 500 | 332 | 332 | 5 | 6 | - | 4000 | 8100 |
| E-CRO-6056 | 300 | 500 | 350 | 350 | 5 | 6 | - | 4000 | 8100 |
| E-CRO-6028 | 300 | 500 | 380 | 380 | 5 | 5 | - | 5100 | 10400 |
| T-E-HM256849D/HM256810/HM256810DG2 | 300.038 | 422.275 | 311.15 | 311.15 | 3.3 | 3.3 | 143 kg | 3700 | 9600 |
| E-EE329119D/329172/329173D | 304.648 | 438.048 | 279.4 | 279.4 | 3.3 | 3.3 | 143 kg | 2740 | 6500 |
| E-M757448D/M757410/M757410D | 304.648 | 438.048 | 280.99 | 279.4 | 4.8 | 3.3 | 140 kg | 2920 | 6900 |
| E-M257149D/M257110/M257110D | 304.8 | 419.1 | 269.875 | 269.875 | 6.4 | 1.5 | 115 kg | 2650 | 6850 |
| E-EE724121D/724195/724196D | 304.8 | 495.3 | 342.9 | 349.25 | 6.4 | 3.3 | 273 kg | 4050 | 9400 |
| E-M257248D/M257210/M257210D | 304.902 | 412.648 | 266.7 | 266.7 | 3.3 | 3.3 | 107 kg | 2860 | 7450 |
| E-M757449D/M757410/M757410D | 305 | 438.048 | 280.99 | 279.4 | 4.8 | 3.3 | 139 kg | 2920 | 6900 |
| E-CRO-6213 | 310 | 430 | 310 | 310 | 4 | 2.2 | 133 kg | 3200 | 8100 |
| E-CRO-6224 | 310 | 430 | 310 | 310 | 5.5 | 2.2 | - | 3400 | 8600 |
| E-LM258649D/LM258610/LM258610D | 317.5 | 422.275 | 269.875 | 269.875 | 3.3 | 1.5 | 110 kg | 2510 | 7050 |
| E-CRO-6424 | 317.5 | 447.675 | 327.025 | 327.025 | 3.3 | 3.3 | - | 3100 | 8600 |
| T-E-HM259049D/HM259010/HM259010D | 317.5 | 447.675 | 327.025 | 327.025 | 3.3 | 3.3 | 161 kg | 3800 | 9550 |
| E-625964 | 320 | 460 | 338 | 338 | 4 | 5 | 193 kg | 3250 | 8650 |
| E-CRO-6501 | 327 | 445 | 230 | 230 | 4 | 2 | 99.8 kg | 2380 | 5650 |
| E-CRO-6604 | 330 | 470 | 340 | 340 | 2.5 | 2.5 | 141 kg | 3500 | 10200 |
| E-EE526131D/526190/526191D | 330.2 | 482.6 | 306.388 | 311.15 | 3.3 | 1.5 | 197 kg | 3100 | 7900 |
| E-CRO-6606 | 330.2 | 533.4 | 254 | 254 | 6 | 6 | 221 kg | 3550 | 6750 |
About Railway Bearing
Description
1) High quality, competitive price .
2) Original same bearing and same packing , same label and same barcode.
3) High-end producing line and testing.
4) Professional team and service.
5) / FAG/ INA/ TIMKEN / NSK / KOYO / NTN / NACHI / IKO/ RHP/ ASAHI/ IZWZ / HRB / LYC can be offered.
FSK Advantage
+ 10 years manufacture experiences
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
Established in 2005, FSK has grown to be one of the main professional providers for bearings all over the world . We take pride in every single product that we sell .Our bearings are in hot sale with better quality and low pricing. You can be relieved and trusting us for our professional bearing technology and service , our friendly English-speaking team is always ready to help you out with importing procedures, product questions and technical support. And we promise to make you or your client proud with our products and services.
Why Choose Us
1.More than 10 years export experience
2.Strict quality control
3.Delivery in time
4.OEM ODM service are available with good price
5.Low MOQ
Payment Terms
1.100% TT
2.30% TT of the deposit ,70% before delivery
3.Western union
4. Paypal (Small amount )
Radial E-625984 Tapered Roller Bearing 420*592*432mm Thicked Steel Four Row,Get Cheap Price from China Steering Bearing Factory Now!
